Dodge Keys & Keyless

Dodge

Note: Unless otherwise noted: Cards are HPC, Keys fit all locks, 8 Keys Maximum. Chrysler Programming Methods

Avenger

· 1995-2000

Keyed Ignition
Key	MIT1
Code	E5001-E7679
Card	F88

· 2008-2014

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618, card X102
System	CAN 2, 4 Digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL ADS uses Tan Dongle
End Avenger

Caliber(2007-2012)

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-RS L-U-P-H
Code	M1-M2618, card X102
System	CAN 3, 4 Digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL ADS uses Tan Dongle
End Caliber

Caravan / Grand Caravan

· 1984-2000

Years	Key	Note	Code	Card
1984-1986	Y152	Ign/Door/Gate	EP1-EP3000	10
1984-1986	Y149	Glovebox	ES1-ES3000	10
1987-1990	Y153	Ign/Door/Gate	EP1-EP3000	10
1987-1990	Y149	Glovebox	ES1-ES3000	10
1991-1992	Y154		G1-G1394	X59
1993-1993	Y155		J1-J3580	X60
1994-1995	Y157		L1-L3580	X60
1996-1997	Y159		L1-L3580	X60
1998-2000	Y159		M1-M2618	X102

· 2001-2003

Keyed Ignition, Transponder Optional
Key	Optional Y160-PT($80)
Code	M1-M2618, card X102
System	Type 2, 4 digit PIN
Note	PIN read uses brass key
Chip	Texas 4D64, NOT reusable
Other	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

· 2004-2007

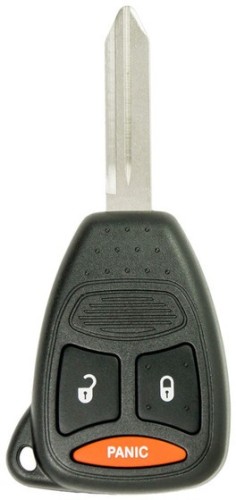

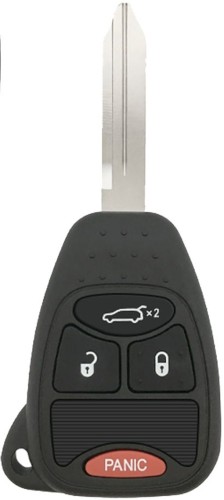

Keyed Ignition, Transponder Optional
Key	Optional Y164-PT($80)
Fob	M3N5WY72XX*($155)
Buttons	L-U-P L-U-P-H-S-S
Code	M1-M2618, card X102
System	PACIFICA, 4 digit PIN
Note	No PIN Read
Chip	Philips 46, NOT reusable
Other	Other FCCs won't work! Case: $24 ADD, AKL*; OBP with 2 ADS uses Green Dongle

· 2008-2020

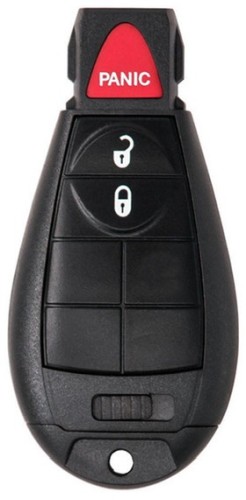

Fobik Ignition
Fobik	IYZ-C01C($155)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS L-U-P-S-S L-U-P-H-S-S L-U-P-H-S-S-RS
Code	M1-M2618, card X102
System	Fobik, 4 Digit PIN
Chip	Philips 46, NOT reusable
Note	ADD, AKL ADS uses Tan Dongle
End Caravan

Challenger

· 2008-2014

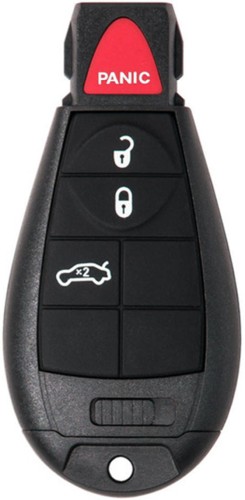

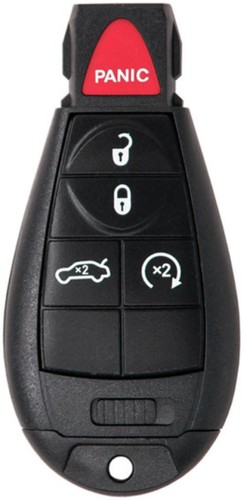

Fobik Ignition
Fobik	IYZ-C01C($155)*
Key	Y170-PT($80)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618, card X102
System	Fobik, 4 Digit PIN
Chip	Philips 46, NOT reusable
Note	ADD, AKL ADS uses Tan Dongle
Other	ADD, AKL; ADS uses Tan Dongle
*2009-2014 could be Keyless Go. ProxFobiks are $185. Program Fobik first, then prox functions.

· 2015-2017

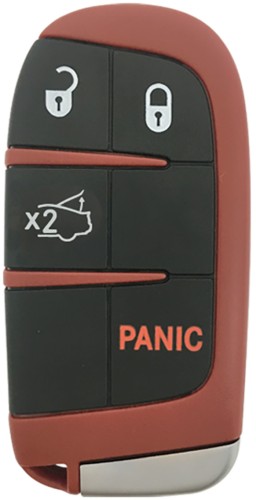

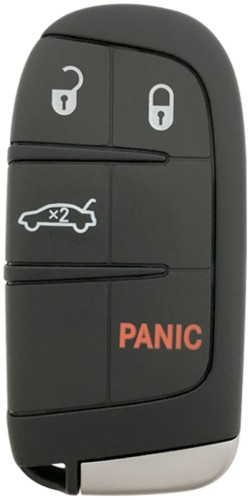

Proximity Ignition
Prox	M3N-40821302($255)
Buttons	L-U-P-T L-U-P-T-RS
System	RFH
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	ADS cannot read PIN

· 2018-2018

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P-T L-U-P-T-RS
System	RFH
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Bypass Cable required. Star connector is green and white. There are two options: There is a STAR connector in the trunk, passenger side, behind rear seat, under carpet. There is a STAR connector behind the kick panel on the passenger side, behind the glove box.

· 2019-2023

Proximity Ignition
Prox	M3M-40821302($285)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618
Card	X102
Note	Not GEN4, Not reusable
Comment	Fiat used both M3N and M3M fobs for these. FCCs are interchangable, but GEN4 fobs use Phillips 46 chip, these use Hitag AES 4A chip.
Bypass Cable required. Star connector is green and white. There are two options: There is a STAR connector in the trunk, passenger side, behind rear seat, under carpet. There is a STAR connector behind the kick panel on the passenger side, behind the glove box. APP: Test key when programming procedure is finished; the programmer has been known to say FAILED after programing successfully.
End Challenger

Charger

· 2006-2007

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P-T
System	CAN System
Code	M1-M2618(X102)
Other	Case: $24 ADS uses Tan Dongle

· 2008-2010

Fobik Ignition
Fobik	IYZ-C01C($155)
Key	Y170-PT($80)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618(X102)
Note	ADS uses Tan Dongle

· 2011-2017

Proximity Ignition

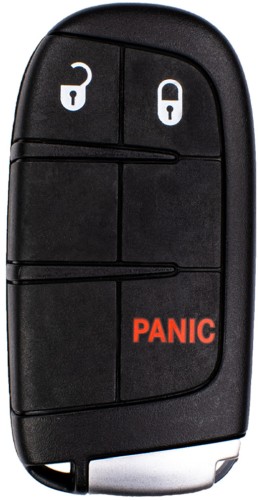

Prox	M3N-40821302($255)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	ADS uses Tan Dongle, can Reset ECU

· 2018-2018

Proximity Ignition
Prox	M3N-40821302$285
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	Bypass Cable required
Star connector is green and white. There are 2: in the trunk (passenger side, behind rear seat, under carpet) or behind the kick panel on the passenger side (behind the glove box)

· 2019-2023

Proximity Ignition
Prox	M3M-40821302($285)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618
Card	X102
Note	Not GEN4, Not reusable
Comment	Fiat used both M3N and M3M fobs for these. FCCs are interchangable, but GEN4 fobs use Phillips 46 chip, these use Hitag AES 4A chip.
Bypass Cable required. Star connector is green and white. There are two options: There is a STAR connector in the trunk, passenger side, behind rear seat, under carpet. There is a STAR connector behind the kick panel on the passenger side, behind the glove box. APP: Test key when programming procedure is finished; the programmer has been known to say FAILED after programing successfully.
End Charger

Colt & Colt Vista

Years	Key	Note	Code	Card
1981-1988	DC3		H1-H5143	F80
1989-1992	MIT1		E5001-E7679	F88
1993-1994	MIT3		30010-32009	F89
End Colt

D50 Pickup(1979-1993)

Keyed Ignition
Key	DC3
Code	H1-H5143
Card	F80
Note	Plymouth Arrow, Mitsubishi Mighty Max
End D50

Dakota

· 1986-2000

Years	Key	Note	Code	Card
1986-1989	Y153	Ign/Door	EP1-EP3000	10
1986-1989	Y149	Glovebox	ES1-ES3000	10
1990-1991	Y154		G1-G1394	X59
1992-1992	Y154	all locks	G1-G1394	X59
1992-1992	Y155	all locks	J1-J3580	X60
1993-1993	Y155		J1-J3580	X60
1994-1997	Y157		L1-L3580	X60
1998-2000	Y157		M1-M2618	X102

· 2001-2004

Keyed Ignition: Transponder Optional

Key

Optional Y160-PT($80)

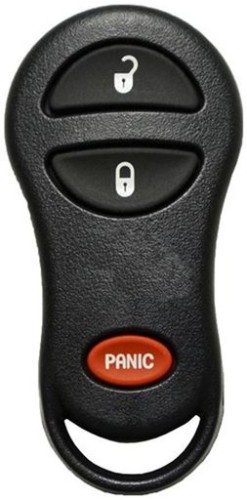

Fob

GQ43VT17T($84)

Buttons

L-U-P

System

Type 2 VPW

Note

PIN read uses brass key

Code

M1-M2618(X102)

Remote

Chrysler 2 (working fob needed)
T-Code: Type 7, ADC-138

Other

ADS: Green Dongle; can Match SKIM

click for Chrysler 2

Note: Requires a working remote to add more

Chrysler OBP Method #2

Press the LOCK button on a working remote 5 times at 2 second intervals.

Turn the ignition to the ON position. Wait for ignition chimes to stop.

Using the working remote, press/hold the UNLOCK button for 4 to 10 seconds; during this period, press the PANIC button for 1 second and release both at the same time.
A chime will sound within 3 seconds to show entry into programming mode.

Within 30 seconds of the chime, press and release the LOCK and UNLOCK buttons simultaneously on the new remote, then press and release just the UNLOCK button.
A chime will sound for successful programming. Repeat for additional remotes, if any.

Turn ignition to OFF and remove key to exit programming.

· 2005-2013

Keyed Ignition: Transponder Optional
Key	Optional Y164-PT($80)
Fob	KOBDT04A($155)
Buttons	L-U-P
System	CAN 1 / 4
Code	M1-M2618(X102)
Note	FCC must be KOBDT04A for non-transponder cars
Other	Case: $24 2005-2006 is PIN bypass Remote programming requires a PIN ADS uses Tan Dongle
End Dakota

Dart(2013-2016)

Fobik Ignition
Fobik	M3N32297100($255)
Key	Y170-PT($80)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618(X102)
Note	FCC specific to Dart, must match ADS uses Tan Dongle

Proximity Ignition
Prox	M3N-40821302($255)
Buttons	L-U-P-T L-U-P-T-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	ADS uses Tan Dongle
End Dart

Durango

· 1998-2000

Keyed Ignition
Key	Y157
Code	M1-M2618
Card	X102
Fob	fobs are unavailable

· 2001-2003

Keyed Ignition: Transponder Optional

Key

Optional Y160-PT($80)

Fob

GQ43VT17T($84)

Buttons

L-U-P

System

Type 2 VPW

Note

PIN read uses brass key

Code

M1-M2618(X102)

Program

Chrysler 2 (working fob needed)
T-Code: Type 7, ADC-138

Other

ADS uses Green Dongle, can match SKIM

click for Chrysler 2

Note: Requires a working remote to add more

Chrysler OBP Method #2

Press the LOCK button on a working remote 5 times at 2 second intervals.

Turn the ignition to the ON position. Wait for ignition chimes to stop.

Turn ignition to OFF and remove key to exit programming.

· 2004-2004

Keyed Ignition: Transponder Optional
Key	OEM Key
Fob	KOBDT04A
Buttons	L-U-P
System	CAN 1
Code	M1-M2618(X102)
Note	FCC must be KOBDT04A for non-transponder cars
Other	Case: $24 Remote programming requires a PIN ADS uses Tan Dongle
On 2004 (and some 2005) transponder equipped models, an OEM key MUST be used (05175786AA).

· 2005-2009

Keyed Ignition: Transponder Optional
Key	Optional Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-RS L-U-P-H L-U-P-H-RS
System	CAN 1/4
Code	M1-M2618(X102)
Other	Case: $24 ADS uses Tan Dongle
On 2004 (and some 2005) transponder equipped models, an OEM key MUST be used (05175786AA).

· 2011-2013

Fobik Ignition
Fobik	IYZ-C01C($155)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS L-U-P-H-RS
Code	M1-M2618(X102)
Note	ADS uses Tan Dongle

Proximity Ignition: Keyless GO
Prox	IYZ-C01C($185)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS L-U-P-H L-U-P-H-RS
Code	M1-M2618(X102)
Note	2 steps: Fobik first, then match Keyless ADS uses Tan Dongle

· 2014-2017

Proximity Ignition
Prox	M3N-40821302$255
Buttons	L-U-P L-U-P-RS L-U-P-H-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	ADS uses Tan Dongle

· 2018-2019

Proximity Ignition
Prox	M3N-40821302$285
Buttons	L-U-P L-U-P-RS L-U-P-H-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	Bypass Cable required
Star connector is behind headlight switch, left of steering wheel. Pull off the edge plate between door and dash, and you can snake your hand in to plug in the cable.

· 2020-2024

Proximity Ignition
Prox	M3N-40821302$285
Buttons	L-U-P L-U-P-RS L-U-P-H-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote. May not be reusable.
Other	Bypass Cable required
Star connector on passenger side of the center console, by where the left foot would be. Remove trim, and lift up carpet.
End Durango

Hornet(2023-2025) can't program

Alfa Romeo system & keys

Intrepid

· 1994-1997

Keyed Ignition
Key	Y157
Code	L1-L3580
Card	X60
Fob	GQ43VT7T: unavailable

· 1998-2000

Keyed Ignition: Transponder Optional

Key

Optional Y160-PT($80)

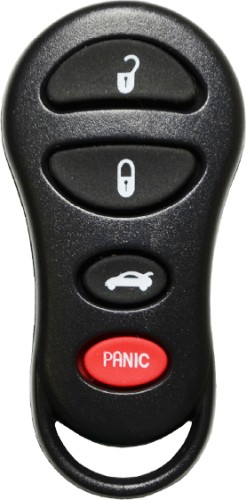

Fob

GQ43VT9T($80)

Buttons

L-U-P-T

Note

no PIN read

System

Type 2 VPW

Code

M1-M2618(X102)

Other

fob: Chrysler 1.2 (working fob needed)
T-Code Type 6, ADC-138

ADS uses Green Dongle

click for Chrysler 1.2

Note: Requires a working remote to add more. 4 fobs maximum.

Chrysler OBP Method #1.2

Fasten the seat belt & close all doors. Turn ignition to the ON position.

Using the working remote, press/hold the UNLOCK button for 4 to 10 seconds; during this period, press/hold the PANIC button too. When a single chime is heard, release both buttons.
You are now in programming mode.

Press and release the LOCK and UNLOCK buttons simultaneously on the new remote. A chime will sound. Within 4 seconds of hearing the chime, press/release any button on the same remote. A chime will sound for successful programming.
Repeat for additional remotes, if any.

Turn ignition to OFF and remove key to exit programming.

· 2001-2004

Keyed Ignition: Transponder Optional

Key

Optional Y160-PT($80)

Fob

GQ43VT17T($80)

Buttons

L-U-P-T

System

Type 2 VPW

Note

PIN read uses brass key

Code

M1-M2618(X102)

Other

fob: Chrysler 2 (working fob needed)
T-Code Type 6, ADC-138

ADS uses Green Dongle

click for Chrysler 2

Note: Requires a working remote to add more

Chrysler OBP Method #2

Press the LOCK button on a working remote 5 times at 2 second intervals.

Turn the ignition to the ON position. Wait for ignition chimes to stop.

Turn ignition to OFF and remove key to exit programming.

End Intrepid

Journey

· 2009-2010

Fobik Ignition
Fobik	IYZ-C01C($155)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618(X102)
Note	No Power Locks/Windows, factory pod key? Does not have keyless entry ADS uses Tan Dongle

· 2011-2017

Proximity Ignition
Prox	M3N-40821302($255)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	ADS uses Tan Dongle

· 2018-2020

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	Bypass Cable required
There are 2 locations for the Star connector: behind trim on driver side rear door pillar (a single screw behind a small cover under the window) behind the headlight switch (hard to get to)
End Journey

Magnum

· 2005-2007

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-H
Code	M1-M2618(X102)
System	CAN 1/4/5
Other	Case: $24 ADS uses Tan Dongle

· 2008-2008

Fobik Ignition
Fobik	IYZ-C01C($155)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS L-U-P-H L-U-P-H-RS
Code	M1-M2618(X102)
Note	FOBIK A. ADS uses Tan Dongle
End Magnum

Monaco(1990-1992)

Keyed Ignition
Ignition	X175 (RN32)
· Code Series	AM1-AM1000
· Card	F119
Door/Trunk	X122 (RN29)
· Code Series	2700-4816
· Card	F102
End Monaco

Neon

· 1994-1999

Years	Key	Note	Code	Card
1994-1997	Y157	Valet: 1794	L1-L3580	X60
1998-1999	Y157		M1-M2618	X102

· 2000-2000

Keyed Ignition: Transponder Optional

Key

Optional Y160-PT($80)

Fob

GQ43VT9T($84)

Buttons

L-U-P-T

System

Type 2 VPW

Note

no PIN read

Code

M1-M2618(X102)

Other

fob: onboard Chrysler 1.2
T-Code Type 1, ADC-138

ADS uses Green Dongle. Can match SKIM.

click for Chrysler 1.2

Note: Requires a working remote to add more. 4 fobs maximum.

Chrysler OBP Method #1.2

Fasten the seat belt & close all doors. Turn ignition to the ON position.

Turn ignition to OFF and remove key to exit programming.

· 2001-2005

Keyed Ignition: Transponder Optional

Key

Optional Y160-PT($80)

Fob

GQ43VT9T($80)

Buttons

L-U-P-T

System

Type 2 VPW

Note

PIN read uses brass key

Code

M1-M2618(X102)

Other

fob: onboard Chrysler 1.2
T-Code Type 1, ADC-138

ADS uses Green Dongle. Can match SKIM.

click for Chrysler 1.2

Note: Requires a working remote to add more. 4 fobs maximum.

Chrysler OBP Method #1.2

Fasten the seat belt & close all doors. Turn ignition to the ON position.

Turn ignition to OFF and remove key to exit programming.

End Neon

Nitro(2007-2012)

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-H L-U-P-RS
System	CAN 3
Code	M1-M2618(X102)
Other	Case: $24 ADS uses Tan Dongle
End Nitro

Promaster

· 2014-2016

Keyed Ignition: Transponder Equipped
Key	68224014A$ or 68224015$
FlipKey	RX2TRF198
Buttons	L-U-R
Code	DE1-DE11210
System	Fiat PreCode (RFH)
Note	Service SIP22
Remote programs with key Requires KC100 or KC501 to precode keys, or pre-coded key from dealer Any key not present at programming will become useless Active alarm with no key available will probably require BCM repalcement Requires disconnecting the battery for 20 seconds after pin/precoding, or the vehicle will not start.

· 2017-2019

Keyed Ignition: Transponder Equipped
Key	68224014A$ or 68224015$
FlipKey	RX2TRF198
Buttons	L-U-R
Code	DE1-DE11210
System	Fiat PreCode (RFH)
Note	Service SIP22
Remote programs with key Requires KC100 or KC501 to precode keys, or pre-coded key from dealer Any key not present at programming will become useless Active alarm with no key available will probably require BCM repalcement Battery disconnect not required on these years

· 2020-2024

Keyed Ignition: Transponder Equipped
Key	68224014A$ or 68224015$
FlipKey	RX2TRF198
Buttons	L-U-R
Code	DE1-DE11210
System	Fiat PreCode (RFH)
Note	Service SIP22
Remote programs with key Requires KC100 or KC501 to precode keys, or pre-coded key from dealer Any key not present at programming will become useless Active alarm with no key available will probably require BCM repalcement Requires the use of the 12+8 bypass cable. The gateway is located behind the glove box. There are a number of screws to remove, some on the sides, and above the glove box. The gateway is buried in behind.
End Promaster

Promaster City(2015-2022)

Keyed Ignition: Transponder Equipped
Key	68224014A$ or 68224015$
FlipKey	RX2TRF198
Buttons	L-U-R
Code	DE1-DE11210
System	Fiat PreCode (RFH)
Note	Service SIP22
Remote programs with key Requires KC100 or KC501 to precode keys, or pre-coded key from dealer Any key not present at programming will become useless Active alarm with no key available will probably require BCM repalcement 2018+ requires access to the gateway (above the brake pedal, close to the column)
End Promaster City

Raider(1987-1990)

Keyed Ignition
Key	DC3
Code	H1-H5143
Card	F80
Note	Mitsubishi Montero
End Raider

Ram Charger

· 1981-1993

Years	Key	Note	Code	Card
1981-1989	Y152	Ign/Door	EP1-EP3000	10
1981-1989	RA4	Tailgate	K1-K1000	1
1990-1990	Y154	Ign/Door	G1-G1394	X59
1990-1990	RA4	Tailgate	K1-K1000	1
1991-1991	Y154	all locks	G1-G1394	X59
1992-1992	Y154	all locks	G1-G1394	X59
1992-1992	Y155	all locks	J1-J3580	X60
1993-1993	Y155	all locks	J1-J3580	X60
End Ram Charger

Ram Pickup(2013+ is GQ4)

· 1996-2001

Years	Key	Note	Code	Card
1996-1997	Y157		L1-L3580	X60
1998-2001	Y157		M1-M2618	X102

· 2002-2005

2002 models w/old body style, see 1998-2001 above

Keyed Ignition: Transponder Optional

Key

Optional Y160-PT($80)

Fob

GQ43VT17T($80)

Buttons

L-U-P

System

Type 2 VPW

Note

PIN read uses brass key

Code

M1-M2618(X102)

Other

fob: Chrysler 1.2 (working fob needed)
T-Code Type 8, ADC-138

ADS: Green Dongle, can match SKIM

click for Chrysler 1.2

Note: Requires a working remote to add more. 4 fobs maximum.

Chrysler OBP Method #1.2

Fasten the seat belt & close all doors. Turn ignition to the ON position.

Turn ignition to OFF and remove key to exit programming.

· 2006-2008

Keyed Ignition: Transponder Optional
Key	Optional Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-RS
System	CAN 2/3*
Code	M1-M2618(X102)
Other	*A few have Fobik B type systems. Case: $24 ADS uses Tan Dongle
Note: APP has a known software issue with some 2006-2007 models that will prevent programming.

· 2009-2010

Ram 1500: Fobik Ignition
Fobik	IYZ-C01C($155)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618(X102)
Note	No Power Locks/Windows, factory pod key? Does not have keyless entry ADS uses Tan Dongle

Ram 2500/3500: Keyed Ignition: Transponder Optional
Key	Optional Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-RS
System	CAN 2/3
Code	M1-M2618(X102)
Other	Case: $24 ADS uses Tan Dongle

· 2011-2012

Fobik Ignition
Fobik	IYZ-C01C($155)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618(X102)
Note	ADS uses Tan Dongle

· 2013-2017

Fobik Ignition
Fobik	GQ4-53T($255)
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS L-U-P-LO L-U-P-LO-RS
Code	M1-M2618(X102)
Note	Passenger's side door lock? Pod Key only

Proximity Ignition

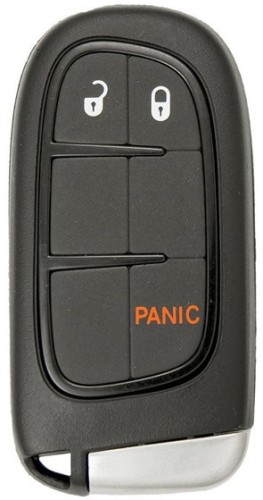

Prox	GQ4-54T($255)
Buttons	L-U-P L-U-P-RS L-U-P-LO L-U-P-LO-RS
Note	Not reusable
Code	M1-M2618(X102)
Other	Not interchangable with Gen4 fobs

· 2018-2018

Fobik Ignition
Fobik	GQ4-53T($275)
Key	Y170-PT($100)
Buttons	L-U-P L-U-P-RS L-U-P-LO L-U-P-LO-RS
Note	Bypass Cable required
Code	M1-M2618(X102)
Comment	Passenger's side door lock? Pod Key only

Proximity Ignition
Prox	GQ4-54T($275)
Buttons	L-U-P L-U-P-RS L-U-P-LO L-U-P-LO-RS
Comment	Not reusable
Note	Bypass Cable required
Code	M1-M2618(X102)
Other	Not interchangable with Gen4 fobs

More Info:
STAR connector is left of the steering column, behind the lightswitch. Pull off left side panel, and you'll see it. Snake the cable up from the bottom or through the hole on the left side of the dash.

· 2019-2024

·· Ram 1500 (old body style)

Fobik Ignition
Fobik	GQ4-53T($275)
Key	Y170-PT($100)
Buttons	L-U-P L-U-P-RS
Note	Bypass cable required
Code	M1-M2618(X102)
Comment	Passenger's side door lock? Pod Key only
STAR connector is left of the steering column, behind the lightswitch. Pull off left side panel, and you'll see it. Snake the cable up from the bottom or through the hole on the left side of the dash.

·· Ram 1500 (new body style)

Proximity Ignition

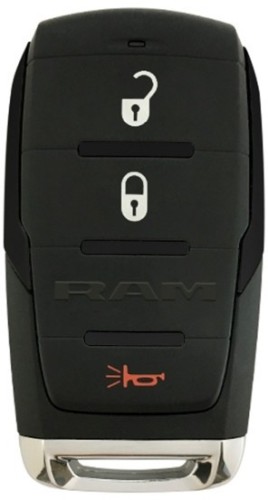

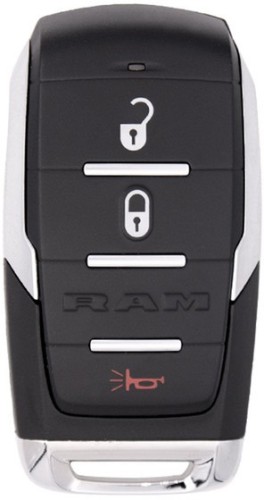

Prox	OHT-4882056($322)
Buttons	L-U-P L-U-P-RS L-U-P-LO L-U-P-TG-RS L-U-P-LO-RS L-U-P-TG-LO-RS
Note	Bypass cable required
Code	M1-M2618(X102)
Other	Proxfobs have black or silver sides. Don't know if it matters. See OEMs button below for OEMs.
Comment	Not reusable.

More Info:

STAR connector is left of the steering column, behind the lightswitch. Pull off left side panel, and you'll see it. Snake the cable up from the bottom or through the hole on the left side of the dash.

·· Ram 2500 / 3500

Proximity Ignition

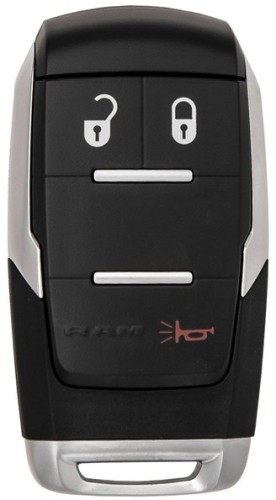

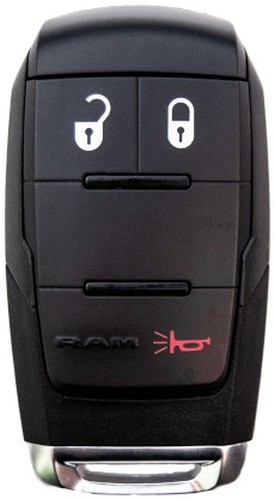

Prox	GQ4-76T($322)
Buttons	P TGL-TGU-P L-U-P L-U-P-RS L-U-P-TG-RS
Note	Bypass cable required
Code	M1-M2618(X102)
Other	Proxfobs have black or silver sides. Don't know if it matters. See OEMs button below for OEMs.
Comment	Not reusable.

More Info:

Bypass cable required. STAR connector is left of the steering column, behind the lightswitch. Pull off left side panel, and you'll see it. Snake the cable up from the bottom or through the hole on the left side of the dash.

End Ram

Ram Van:See: Vans

Spirit

· 1989-1995

Years	Key	Note	Code	Card
1989-1989	Y153		EP1-EP3000	10
1990-1991	Y154		G1-G1394	X59
1992-1992	Y154	all locks	G1-G1394	X59
1992-1992	Y155	all locks	J1-J3580	X60
1993-1993	Y155	Valet: 1793V	J1-J3580	X60
1994-1995	Y157	Valet: 1794V	L1-L3580	X60
End Spirit

Sprinter can't program

· 2003-2006

Keyed Ignition: Transponder Equipped
Key	BYS15TK1 (Must be pre-cloned) YM15T5-SI (Ilco EZ-Clone)
Code	NF1-NF1200
Card	F30
Fob	KR55: unavailable
Note	Service MB17

· 2007-2013

Keyed Ignition: Transponder Equipped
Key	Dealer Key, Ordered by VIN
Code	1-6700
Card	High Security
Note	Service HU64
End Sprinter

Stealth(1991-1996)

Keyed Ignition
Key	MIT1
Code	E5001-E7679
Card	F88
Note	Rebadged Mitsubishi 3000GT
Fob	E4EG8DL: unavailable
End Stealth

Stratus

Stratus Coupe (2 Door, 2001-2005)

Keyed Ignition: Transponder Equipped
Key	Y165-PT($48)
Code	F1-F1571
Card	F306
System	Stratus 2Dr Htp
Note	rebadged Mitsubishi Eclipse
Fob	OUCG8D-525M-A: unavailable

Stratus Sedan (4 Door)

· 1995-1998

Years	Key	Note	Code	Card
1995-1997	Y157		L1-L3580	X60
1998-1998	Y159		M1-M2618	X102

· 1999-2000

Keyed Ignition: Transponder Optional
Key	Optional Y160-PT($80)
Code	M1-M2618
Card	X102
System	Type 1
Note	no PIN read
Fob	KYPT03C98JA: unavailable
Other	ADS uses Green Dongle, can match SKIM

· 2001-2006

Keyed Ignition: Transponder Optional
Key	Optional Y160-PT($80)
Fob	GQ43VT17T($80)
Buttons	L-U-P-T
System	Type 2 VPW
Note	PIN read uses brass key
Code	M1-M2618(X102)
Other	fob: T-Code Type 6, ADC-138 ADS uses Green Dongle, can match SKIM
End Stratus

Vans

· 1981-1998

Years	Key	Note	Code	Card
1981-1986	Y152	Ign/Door	EP1-EP3000	10
1981-1986	Y149	Glovebox	ES1-ES3000	10
1987-1989	Y152	Ign/Door	EP1-EP3000	10
1987-1989	Y149	Glovebox	ES1-ES3000	10
1990-1991	Y154		G1-G1394	X59
1992-1992	Y154	all locks	G1-G1394	X59
1992-1992	Y155	all locks	J1-J3580	X60
1993-1993	Y155		J1-J3580	X60
1994-1997	Y157		L1-L3580	X60
1998-1998	Y157		M1-M2618	X60

· 1999-2000

Keyed Ignition
Key	Y157
Fob	GQ43VT9T($80)
Buttons	L-U-P
Code	M1-M2618(X102)
Other	use Chrysler 3 onboard

More Info:

No working remote? See if vehicle will go into programming mode before ordering.

· 2001-2003

Keyed Ignition
Key	Y159
Fob	GQ43VT9T($80)
Buttons	L-U-P
Code	M1-M2618(X102)
Other	use Chrysler 3 onboard

More Info:

No working remote? See if vehicle will go into programming mode before ordering.

· 2004-2006

Keyed Ignition
Key	Y159
Fob	GQ43VT17T($80)
Buttons	L-U-P
Code	M1-M2618(X102)
Other	fob: T-Code Type 8, ADS-138
End Vans

Viper

· 1992-2010

Years	Key	Note	Code	Card
1992-1992	Y154		G1-G1394	X59
1993-1993	Y155		J1-J3580	X60
1994-1997	Y157		L1-L3580	X60
1998-2002	Y157		M1-M2618	X102
2003-2010	Y159		M1-M2618	X102

· 2013-2017

Proximity Ignition:$255
Prox	M3N-40821302
Buttons	L-U-P-T
Code	M1-M2618(X102)
Note	GEN4 Tombstone remote
Other	ADS uses Tan Dongle

More Info:

Price for the red proxfobs is $348

Cannibal is our only programmer that mentions Viper.

A regular GEN4 Tombstone prox may be used, but:

For 2013-2014 models, only the black proximity fob was used and it didn't affect the horsepower.
For 2015-2017 vehicles, the black fob limits the actual horsepower of the vehicle, while the red fob allows the engine's full horsepower.

End Viper

Other

Models & Years Not Listed Above

2 door and 4 door models

· 1981-1989

Keyed Ignition
Ignition/Door	Y152
· Code Series	EP1-EP3000
Trunk/GB	Y149
· Code Series	ES1-ES3000
Card	10 (both)

· 1990-1991

Keyed Ignition
Key	Y154
Code	G1-G1394
Card	X59

· 1992-1992

Keyed Ignition, Split Year
Key 1	Y154
· Code Series	G1-G1394
· Card	X59
Key 2	Y155
· Code Series	J1-J3580
· Card	X60

· 1993-1993

Keyed Ignition
Key	Y155
Code	J1-J3580
Card	X60
Note	Valet: 1793V

· 1994-1996

Keyed Ignition
Key	Y157
Code	L1-L3580
Card	X60
Note	Valet: 1794V
End 2 and 4

3 door and 5 door models

· 1981-1989

Keyed Ignition
Ignition/Door	Y152
· Code Series	EP1-EP3000
Glovebox	Y149
· Code Series	ES1-ES3000
Card	10 (both)

· 1990-1991

Keyed Ignition
Key	Y154
Code	G1-G1394
Card	X59

· 1992-1992

Keyed Ignition, Split Year
Key 1	Y154
· Code Series	G1-G1394
· Card	X59
Key 2	Y155
· Code Series	J1-J3580
· Card	X60

· 1993-1993

Keyed Ignition
Key	Y155
Code	J1-J3580
Card	X60
Note	Valet: 1793V

· 1994-1996

Keyed Ignition
Key	Y157
Code	L1-L3580
Card	X60
Note	Valet: 1794V

models from above

· 1984-1986

Keyed Ignition
Ignition/Door/Gate	Y152
· Code Series	EP1-EP3000
Glovebox	Y149
· Code Series	ES1-ES3000
Card	10 (both)

· 1987-1990

Keyed Ignition
Ignition/Door/Gate	Y153
· Code Series	EP1-EP3000
Glovebox	Y149
· Code Series	ES1-ES3000
Card	10 (both)

· 1991-1992

Keyed Ignition
Key	Y154
Code	G1-G1394
Card	X59

· 1993-1993

Keyed Ignition
Key	Y155
Code	J1-J3580
Card	X60

· 1994-1995

Keyed Ignition
Key	Y157
Code	L1-L3580
Card	X60
Fob	GQ43VT5T: unavailable

· 1996-1997

Keyed Ignition
Key	Y159
Code	L1-L3580
Card	X60
Fob	GQ43VT7T: unavailable

· 1998-2000

Keyed Ignition
Key	Y159
Code	M1-M2618
Card	X102
Fobs	are unavailable
