Ford Keys & Keyless

Ford

General Info

Onboard Programming Variations:

2012-2015 Escape - Use Ford 2
2011-2013 Fiesta - Use Ford 2
2014-2019 Fiesta - Use 14 Fiesta
2000-2008 Focus - Use Ford 2
2010-2016 Transit Connect - Use Ford 2

· Ford 2

Ford OBP #2

Turn ignition from OFF to RUN 4 times within 6 seconds, with the 4th time ending in RUN.
Turn the ignition OFF. The vehicle will chime to confirm programming mode.
Within 20 seconds, press any button on the remote. The system will chime once to confirm programming. Repeat for additional remotes, if any.
Turn ignition to RUN to exit programming mode.
Turn ignition OFF and test remote(s).

· 14 Fiesta

Ford OBP for 2014 Fiesta

Turn the ignition from OFF to RUN 8 times within 10 seconds.
Turn the ignition key OFF. A tone will sound to confirm programming mode.
Press any button on a new remote within 10 seconds. A tone will sound to confirm programming.
Repeat step 3 within 10 seconds for each remote. Do not remove the key from the ignition when pressing the button on the remote.
Turn the ignition key to RUN to exit programming mode.
Turn ignition OFF and test remote(s).

Models Beginning With A

Aerostar

· 1987-1993

Ignition/Door	H54
· Code Series	A-B-C-D-E
· Card	X56
Trunk/GB	H50
· Code Series	FB0-FB1863
· Card	C24

· 1994-1994

Ignition/Door/Hatch	H54
· Code Series	A-B-C-D-E
· Card	X56
Glovebox	H50
· Code Series	FB0-FB1863
· Card	C24

· 1995-1996

Key	H54
Code	A-B-C-D-E
Card	X56
Note	Key fits all locks

· 1997-1997

Key	H75
Code	1X-1706X
Card	X101
Note	Key fits all locks
End Aerostar

Aspire

· 1994-1995

Key	H70 (X231)
Code	B1001-B2200
Card	F303
Note	Key fits all locks
Kia 10 cut. Check mfg date prior to running code; code varies by dates.

· 1996-1997

Key	H70 (X231)
Code	B5001-B6200
Card	F303
Note	Key fits all locks
Kia 10 cut. Check mfg date prior to running code; code varies by dates.
End Aspire

Models Beginning With B

Bronco, Bronco II(1982-1996)

· 1982-1991

Ignition	H51
· Code Series	FA0-FA1863
Door/GB	H50
· Code Series	FB0-FB1863
Card	C24 (both)

· 1992-1996

Ignition/Door/Hatch	H60
· Code Series	A-B-C-D-E
· Card	X56
Glovebox	H50
· Code Series	FB0-FB1863
· Card	C24
Fob	GQ43VT4T: not available
eyestopper

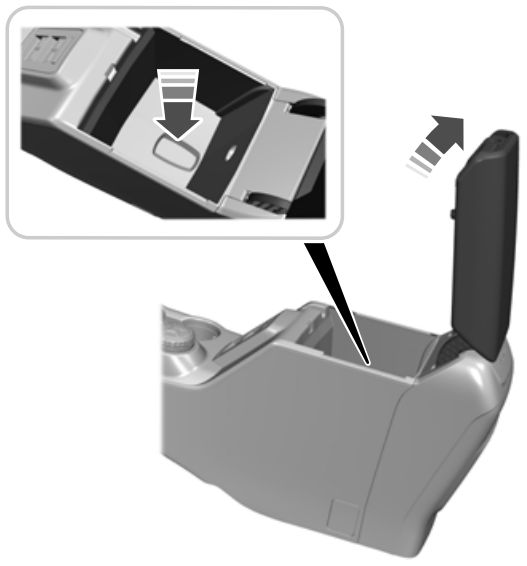

Bronco(2021-2024) can't program

Proximity Ignition --$255
MHz	315 MHz	902 MHz
Prox	M3N-A2C931423	M3N-A2C931426
Buttons	L-U-P	L-U-P-RS
OEM	164-R8163	164-R8182
Code	10001-11500
Other	4 Maximum, reusable. Can ADD onboard with 2 programmed.

More Info:

FCC IDs aren't important on Ford's Gen5 proxes, but the frequencies are.

Any Gen5 prox will program, but if the frequency isn't correct, then the keyless entry and prox functions won't work. The vehicle will only start with the prox in the pocket.

End Bronco

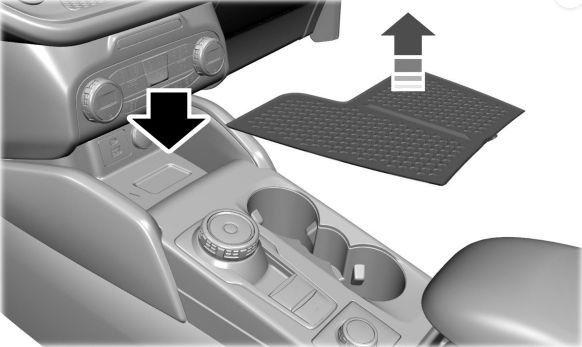

Bronco Sport(2021-2023) can't program

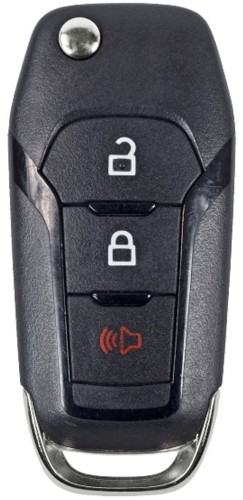

Keyed Ignition(FlipKeys: $225)
Key	H128-PT($108)
Fob	N5F-A08TAA	N5F-A08TDA
Buttons	L-U-P	L-U-P-RS
OEM	164-R8130	164-R8134
Code	30,001-31,544
Note	High Security Center Mill
Other	2 Minimum, 6 Maximum, reusable No onboard programming in the Owner's Manual

Proximity Ignition --$255
MHz	315 MHz	902 MHz
Prox	M3N-A2C931423	M3N-A2C931426
Buttons	L-U-P L-U-P-H	L-U-P-RS L-U-P-H-RS
OEM	164-R8163 164-R8197	164-R8182 164-R8288
Code	30,001-31,544
Note	High Security Center Mill
Other	2 Minimum, 4 Maximum, reusable. No onboard programming in the Owner's Manual

More Info:

FCC IDs aren't important on Ford's Gen5 proxes, but the frequencies are.

Any Gen5 prox will program, but if the frequency isn't correct, then the keyless entry and prox functions won't work. The vehicle will only start with the prox in the pocket.

End Bronco Sport

Models Beginning With C

C-Max(2013-2019)

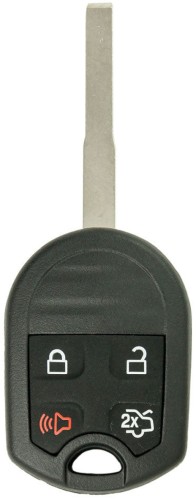

Keyed Ignition
Key	H94-PT($73)
Fob	OUCD6000022($162)
Buttons	L-U-P-T
OEM	164-R8046
Code	10,001-11,500
Other	fob: onboard Ford 1 8 Maximum, reusable

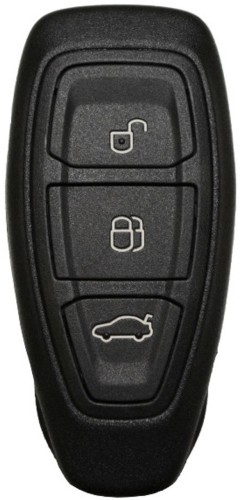

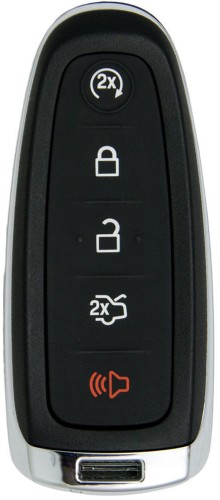

Proximity Ignition --$255
Prox	KR55WK48801	M3N5WY8609
Buttons	L-U-T	L-U-P-T-RS
OEM	164-R8048	164-R7995
MHz	433 MHz	315 MHz
Code	11,501-13,000	11,501-13,000
Other	4 Maximum, reusable. No onboard in owner's manual

More Info:

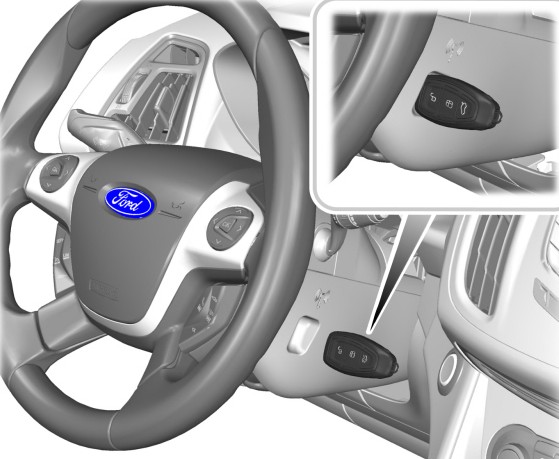

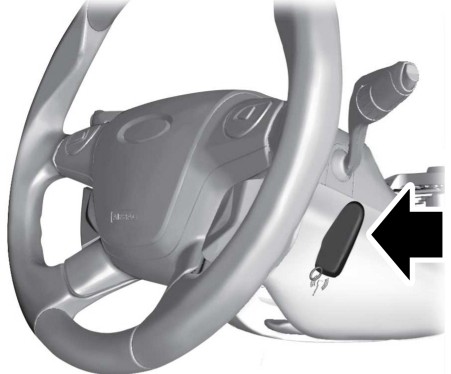

2 Step Prox programming. Program Proximity functions first.

ADS uses Pink (Prox) & Tan (Immo) Dongle

End C-Max

Club Wagon

· 1967-1992

Ignition	H51
· Card	X56
Door/GB	H50
· Card	C24

· 1992-1994

Ignition/Door	H60
· Code Series	A-B-C-D-E
· Card	X56
GB	H50
· Code Series	FB0-FB1863
· Card	C24

· 1995-1995

Key	H60
Code	A-B-C-D-E
Card	X56
Note	Key fits all locks

· 1996-1996

Note: Split Year, 2 possibilities
Key Type 1	H60
· Code	A-B-C-D-E
· Card	X56

Key Type 2	H75
· Code	1X-1706X
· Card	X101

· 1997-2006

Key	H75
Code	1X-1706X
Card	X101
End Club Wagon

Contour

· 1995-1995

Key	H60
Code	A-B-C-D-E
Card	X56
Fob	GQ43VT4T: not available

· 1996-1996

Note: Split Year, 2 possibilities
Key Type 1	H60
Key Type 2	H75
· Code	A-B-C-D-E (both)
· Card	X56 (both)
Fob	GQ43VT4T: not available

· 1997-2000

All engines except V6
Key	H75
With V6 engine
Key	H73-PT
Code	A-B-C-D-E (both)
Card	X56 (both)
Fob	GQ43VT4T: not available

More Info:

1997-early 1998 models are PATS 1.
Production Date of 02/02/98 & up use PCM system.

End Contour

Courier

· 1970-1973

Key	MZ11 (X36)
Note	Key fits all locks

· 1974-1980

Note: Split Year, 2 possibilities
Key 1	MZ4 (X4)
Key 2	MZ5 (X5)
Note	Key fits all locks

· 1981-1981

Note: Split Year, 2 possibilities
Key 1	MZ4 (X4)
· Code Series	3500-4600
Key 2	MZ5 (X5)
· Code Series	1500-1999
Note	Key fits all locks

· 1982-1982

Ignition	MZ5 (X5)
· Code Series	1500-1999
Door	MZ9 (X26)
· Code Series	2500-2999
Note	Key fits all locks
End Courier

Crown Victoria

· 1967-1980

Ignition/Door	H51
Trunk/GB	H50

· 1981-1989

Ignition	H51
· Code Series	FA0-FA1863
· Card	X56
Door/Trunk/GB	H50
· Code Series	FB0-FB1863
· Card	C24

· 1990-1992

Ignition/Door	H60
· Code Series	A-B-C-D-E
· Card	X56
Trunk/GB	H50
· Code Series	FB0-FB1863
· Card	C24

· 1993-1996

Ignition/Door	H60
· Code Series	A-B-C-D-E
· Card	X56
Trunk	H50
· Code Series	FB0-FB1863
· Card	C24

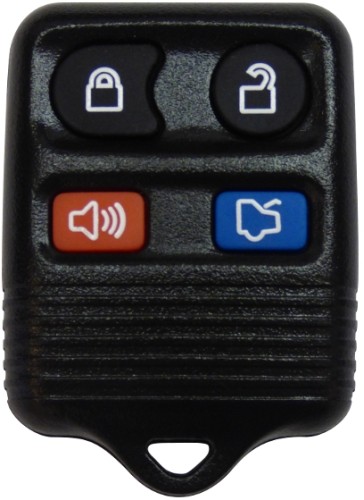

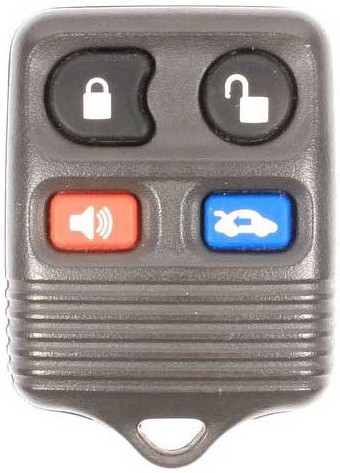

Fob	CWTWB1U313, $60
Buttons	L-U-P-T
Other	not the regular remote

More Info:

No keypad? Doesn't have keyless entry.
Use Ford 4 for onboard fob programming.

· 1997-1997

Key	H75
Fob	CWTWB1U313, $60
Buttons	L-U-P-T
Code	1X-1706X
Card	X101
Other	not the regular remote

More Info:

No keypad? Doesn't have keyless entry.
Use Ford 4 for onboard fob programming.

eyestopper

· 1998-2002

Key	H72-PT (PATS 2)
Fob	CWTWB1U313, $60
Buttons	L-U-P-T
Code	1X-1706X
Card	X101
Note	key: 8 Maximum, reusable
Other	not the regular remote
Other	no fob onboard for 1998, add token for programming

More Info:

No fob onboard for 1998.
1999-2002 use Ford 2 or a programmer.

ADS key: Black Dongle
ADS keypad: Type 1, Black
ADS remote: Type 1/2, Black
ADS Parameter: Select HEC

eyestopper

· 2003-2006

Keyed Ignition
Key	H92-PT
Fob	CWTWB1U313($60)
Buttons	L-U-P-T
Code	1X-1706X
Card	X101
Other	not the regular remote

More Info:

Remote & Keypad:
ADS keypad: Type 1/2, Black
ADS remote: Type 1/2, Black
Fob onboard use Ford 2 or a programmer.

Key:
2003-2004 is PCM; 2005-2006 is PATS 3
ADS uses Black Dongle

· 2007-2011

Keyed Ignition
Key	H92-PT($50)
Note	Most 2011 models aren't transponder equipped
Fob	CWTWB1U331($45)
Buttons	L-U-P-T
Code	1X-1706X
Card	X101
Other	fob: onboard Ford 1

More Info:

These are a PATS 3 system.
ADS uses Black Dongle

End Crown Victoria

Models Beginning With E

E-Series(years)

· 1999

Econoline Van

· 1967-1979

Ignition	H51
Door/GB	H50

· 1980-1991

Ignition/Door	H51
· Code Series	FA0-FA1863
· Card	X56
Trunk/GB	H50
· Code Series	FB0-FB1863
· Card	C24

· 1992-1994

Ignition/Door	H60
· Code Series	A-B-C-D-E
· Card	X56
GloveBox	H50
· Code Series	FB0-FB1863
· Card	C24

· 1995-1995

Key	H60
Code	A-B-C-D-E
Card	X56
Note	Key fits all locks

· 1996-1996

Note: Split Year, 2 possibilities
Key Type 1	H60
· Code Series	A-B-C-D-E
· Card	X56
Key Type 2	H75
· Code Series	1X-1706X
· Card	X101

· 1997-2006

Key	H75
Code	1X-1706X
Card	X101
End Econoline

Ecosport(years)

· 1999

Edge(years)

· 1999

Escape(years)

· 1999

Escort

· 1981-1987

Ignition	H51
Door/Trunk	H50

· 1988-1996

Key	H60
Note	Key fits all locks

· 1997-2003

Key	H76 (MZ31)
Code	10100-12283
Card	F68
End Escort

Excursion(years)

· 1999

Expedition(years)

· 1999

Explorer(years)

· 1999

Explorer Sport Trac(years)

· 1999

Models Beginning With F

F-150/F-250 Light Duty(years)

· 1999

F-250 to F-550 Super Duty(years)

· 1999

Fairlane(1962-1966)

Ignition/Door	1127FR
Trunk/GB	S1127FR

Falcon(1959-1966)

Ignition/Door	1127FL
Trunk/GB	S1127FL
End Falcon

Festiva(1989-1993)

Key	MZ16 (H59, X178)
Code	6500-7733
Card	F65
End Festiva

Fiesta(years)

· 1999

Five Hundred(years)

· 1999

Flex(years)

· 1999

Focus(years)

· 1999

Freestar(years)

· 1999

Freestyle(years)

· 1999

Fusion(years)

· 1999

Models Beginning With G

GT(years)

· 1999

Models Beginning With M

Maverick(years)

· 1999

Mustang(years)

· 1999

Cobra (mustang) Mach E (mustang)

· 1999

Models Beginning With P

Probe(years)

· 1999

Models Beginning With R

Ranger(years)

· 1999

Models Beginning With T

Taurus(years)

· 1999

Tempo

· 1983-1986

Ignition	H51
· Code Series	FA0-FA1863
Door/Trunk/GB	H50
· Code Series	FB0-FB1863
Card	C24 (both)

· 1987-1994

Ignition/Door	H60
· Code Series	A-B-C-D-E
· Card	X56
Trunk/GB	H50
· Code Series	FB0-FB1863
· Card	C24
End Tempo

Thunderbird(years)

· 1999

Transit(years)

· 1999

Transit Connect(years)

· 1999

Windstar(years)

· 1999

ZX2

· 1983-1987

Ignition/Door	H51
· Code Series	FA0-FA1863
Trunk/GB	H50
· Code Series	FB0-FB1863
Card	C24 (both)

· 1988-1996

Key	H60
Code	A-B-C-D-E
Card	X56
Note	Key fits all locks
End ZX2

Other

Models & Years Not Listed Above

model(years)

· 1999

Heavy Trucks

model(years)

· 1999

Transfer Heavy Trucks 6000, 9000, CF7000

Non-US Vehicles

model(years)

· 1999

Ignition/Door	H51
· Code Series	A-B-C-D-E
· Card	X56
Trunk/GB	H50
· Code Series	FB0-FB1863
· Card	C24
Note	xxxx

End xxxx

Ignition/Door	H51
· Code Series	A-B-C-D-E
· Card	X56
Trunk/GB	H50
· Code Series	FB0-FB1863
· Card	C24
Fob	xxxx
Buttons	L-U-P L-U-P-RS
Other	fob: no onboard

End xxxx

Key	xxxx
Code	xxxx
Card	xxxx
Note	xxxx

End xxxx

Key	xxxx
Fob	xxxx($73)
Buttons	L-U-P L-U-P-RS
Code	xxxx
Card	xxxx
Other	fob: no onboard SBB/Autek/APP/Cannibal/X-Tool/ADS (Black) key: ADS (Black)

End xxxx

Keyed Ignition
Key	xxxx-PT($73)
Note	xxxx
Fob	xxxx($120)
Buttons	L-U-P L-U-P-RS
Code	xxxx
Card	xxxx
Other	fob: onboard Ford 1 key: 8 Maximum, not reusable
Other	fob: no onboard SBB/Autek/APP/Cannibal/X-Tool/ADS (Black) key: ADS (Black)
eyestopper
End xxxx

Keyed Ignition
Key	H128-PT($108)
Note	xxxx
Fob	xxxx($225)	xxxx($225)
Buttons	L-U-P	L-U-P-RS
OEM	xxxx	xxxx
Code	xxxx
Other	fob: no onboard key: 8 Maximum, not reusable
eyestopper
End xxxx

Proximity Ignition --$255
MHz	315 MHz	902 MHz
Prox	fcc	fcc
Buttons	L-U-P	L-U-P-RS
OEM	164-R8163	164-R8182
Code	xxxx
Note	requires 2
Other	4 Maximum, reusable. Can ADD onboard with 2 programmed.

More Info:

FCC IDs aren't important on Ford's Gen5 proxes, but the frequencies are.

Any Gen5 prox will program, but if the frequency isn't correct, then the keyless entry and prox functions won't work. The vehicle will only start with the prox in the pocket.

ADS uses Black Dongle
xxxx
xxxx

End xxxx

· 1999
