Jeep Keys & Keyless

Jeep

Note: Unless otherwise noted: Cards are HPC, Keys fit all locks, 8 Keys Maximum. Chrysler Programming Methods

Cherokee

· 1981-1997

Years	Key	Note	Code	Card
1981-1984	RA4	Ignition	K1-K1000	1
1981-1984	RA3	Door/T.gate	L1-L1000	1
1985-1985	RA4	Ignition	K1-K1000	1
	B46	Ignition	E0-E999	25
	RA3	Door/T.gate	L1-L1000	1
1986-1990	B46	Ignition	E0-E999	25
1986-1990	RA3	Door/T.gate	L1-L1000	1
1991-1991	Y154		G1-G1394	X59
1992-1992	Y154	all locks	G1-G1394	X59
1992-1992	Y155	all locks	J1-J3580	X60
1993-1993	Y155		J1-J3580	X60
1994-1997	Y157		L1-L3580	X60

· 1998-2001

Keyed Ignition: Transponder Optional
Key	Optional Y160-PT($80)
Code	M1-M2618, card X102
System	Type 1, 4 digit PIN
Note	no PIN read
Chip	Texas 4D64, NOT reusable
Other	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

· 2014-2017

Fobik Ignition (Cherokee Latitude)
Fobik	GQ4-53T($255)
Key	Y199-PT($90)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618, card X102
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Pickup fobiks will not interchange

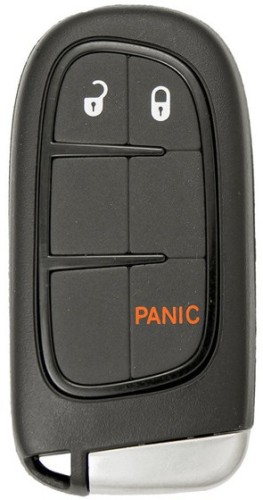

Proximity Ignition
Prox	GQ4-54T($255)
Buttons	L-U-P L-U-P-RS L-U-P-H-RS
Code	M1-M2618, card X102
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Pickup proxes will not interchange

· 2018-2023

Fobik Ignition (Cherokee Latitude)
Fobik	GQ4-53T($285)
Key	Y199-PT($120)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618, card X102
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Pickup fobiks will not interchange

Proximity Ignition
Prox	GQ4-54T($285)
Buttons	L-U-P L-U-P-RS L-U-P-H-RS
Code	M1-M2618, card X102
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Pickup proxes will not interchange

STAR connector is located above kick panel behind glove box.
End Cherokee

CJ5(1974-1984)

Keyed Ignition
Ignition	RA4
Door/Tailgate	RA3
End CJ5

Comanche(1974-1984)

Keyed Ignition
Ignition	RA4
Door/Tailgate	RA3
End CJ5

Commander

· 2006-2007

Keyed Ignition: Transponder Optional
Key	Y164-PT ($80)
Fob	OHT692427AA($155)
Buttons	L-U-P-H L-U-P-H-RS L-U-P-H-G-RS
Code	M1-M2618, card X102
System	CAN 1/4, 4 digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle

· 2008-2010

Fobik Ignition
Fobik	IYZ-C01C($155)*
Key	Y170-PT($80)
Buttons	L-U-P-G L-U-P-G-RS L-U-P-H-RS L-U-P-H-G-RS
Code	M1-M2618, card X102
System	Fobik, 4 Digit PIN
Chip	Philips 46, NOT reusable
Other	ADD, AKL; ADS uses Tan Dongle
*Some 2009 models were equipped with Keyless GO. ProxFobiks are $185. Program Fobik first, then program Prox functions.
End Commander

Compass

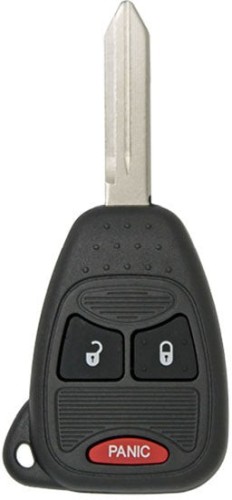

· 2007-2016

Keyed Ignition: Transponder Equipped
Key	Y164-PT ($80)
Fob	OHT692713AA($155)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618, card X102
System	CAN 3, 4 digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle

· 2017-2018

Keyed Ignition: Transponder Equipped
Key	Y164-PT ($80)
Fob	OHT692713AA($155)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618, card X102
System	CAN 3, 4 digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle

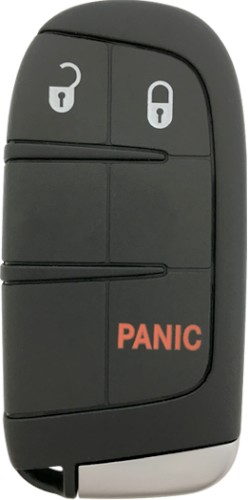

Proximity Ignition
Prox	M3N-40821302($255)
Buttons	L-U-P L-U-P-H L-U-P-RS L-U-P-H-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Not a Gen4 prox

· 2019-2020

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-H L-U-P-RS L-U-P-H-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Not a Gen4 prox
Two options: · RFH hub under the rear headliner · STAR connector on the passenger side, under the right side trim panel. Remove a single screw, take off the trim panels, and there will be a connector there, almost to the weather stripping. You'll need to back probe the brown with white stripe (CAN HI) and the yellow (CAN LOW)

· 2021-2021

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-H L-U-P-RS L-U-P-H-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Not a Gen4 prox
Two options: · RFH hub under the rear headliner · Use a 12+8 cable to connect to a gateway located above the pedals

· 2022-2025 - can't program?

Proximity Ignition
APP now says can't program
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-H L-U-P-RS L-U-P-H-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	Not a Gen4 prox
Two options: · RFH hub under the rear headliner · Use a 12+8 cable to connect to a gateway located above the pedals
End Compass

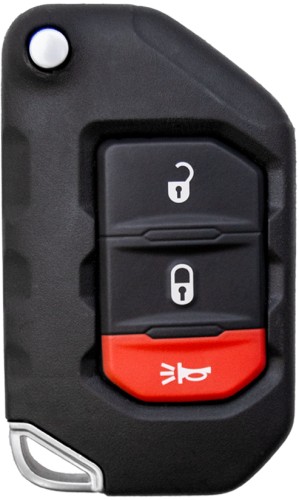

Gladiator(2020-2024)

Proximity Ignition
Prox	OHT1130261($345)
Buttons	none L-U-P L-U-P-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL
STAR connector is directly behind the glovebox. Open glovebox, fold all the way down, and you’ll see it
End Gladiator

Grand Cherokee

· 1992-1997

Years	Key	Note	Code	Card
1992-1992	Y154	all locks	G1-G1394	X59
1992-1992	Y155	all locks	J1-J3580	X60
1993-1993	Y155		J1-J3580	X60
1994-1997	Y157		L1-L3580	X60

· 1998-1998

Keyed Ignition: Transponder Optional
Key	Optional Y160-PT($80)
Code	M1-M2618, card X102
System	Type 2, 4 digit PIN
Note	no PIN read
Chip	Texas 4D64, NOT reusable
Other	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

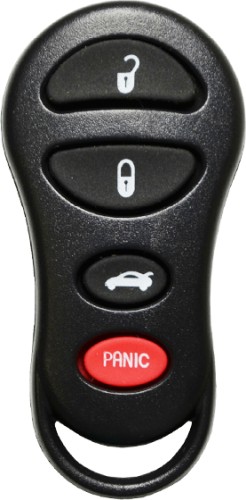

· 1999-2000

Keyed Ignition: Transponder Equipped
Key	Y160-PT($80)

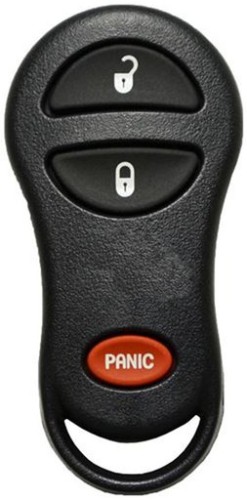

Fob	GQ43VT9T($80)
Buttons	L-U-P
Code	M1-M2618, card X102
System	Type 2, 4 digit PIN
Note	no PIN read
Chip	Texas 4D64, NOT reusable
+fob	T-Code: ADC-138, Type 2
+key	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

· 2001-2004

Keyed Ignition: Transponder Equipped
Key	Y160-PT($80)
Fob	GQ43VT9T($80)
Buttons	L-U-P
Code	M1-M2618, card X102
System	Type 2, 4 digit PIN
Note	PIN read uses brass key
Chip	Texas 4D64, NOT reusable
+fob	T-Code: ADC-138, Type 2
+key	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

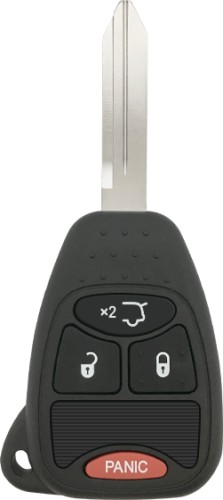

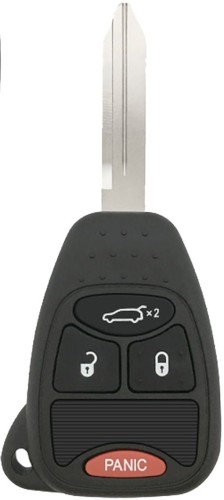

· 2005-2007

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692713AA($155)
Buttons	L-U-P-H L-U-P-RS L-U-P-H-RS
Code	M1-M2618, card X102
System	CAN 1/4, 4 digit PIN
Note	PIN Bypass on 2005-2006
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle

· 2008-2013

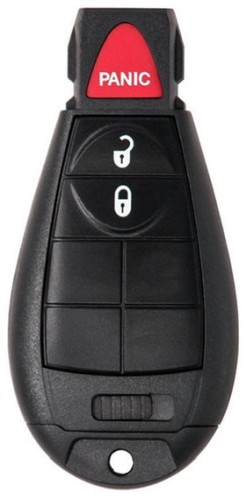

Fobik Ignition
Fobik	IYZ-C01C($155)*
Key	Y170-PT($80)
Buttons	L-U-P L-U-P-RS L-U-P-G L-U-P-G-RS L-U-P-H-RS L-U-P-H-G-RS
Code	M1-M2618, card X102
System	Fobik, 4 Digit PIN
Chip	Philips 46, NOT reusable
Other	ADD, AKL; ADS uses Tan Dongle
*2011-2013 could be Keyless Go. ProxFobiks are $185. Program Fobik first, then prox functions.

· 2014-2017

Proximity Ignition
Prox	M3N-40821302($255)
Buttons	L-U-P L-U-P-RS L-U-P-H L-U-P-H-RS
Code	M1-M2618, card X102
System	RFH, 4 Digit PIN
Chip	Phillips 46, reusable
Note	GEN4 Tombstone remote
Other	ADD, AKL

· 2018-2020

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-RS L-U-P-H L-U-P-H-RS
Code	M1-M2618, card X102
System	RFH, 4 Digit PIN
Chip	Phillips 46, reusable?
Note	GEN4 Tombstone remote
Other	ADD, AKL
STAR connector is on the passenger side center console, behind the trim panel

· 2021-2021 - can't program some

Proximity Type 1
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-RS L-U-P-H L-U-P-H-RS
Code	M1-M2618, card X102
System	RFH, 4 Digit PIN
Chip	Phillips 46, reusable?
Note	GEN4 Tombstone remote
Other	ADD, AKL
STAR connector is on the passenger side center console, behind the trim panel

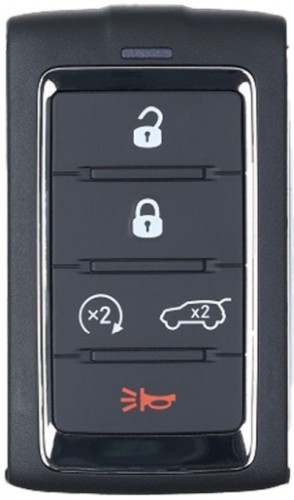

Proximity Type 2: can't program
Grand Cherokee L or Limited
Prox	M3NWXF0B1
Buttons	L-U-P L-U-P-G-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable

· 2022-2022 - can't program

Proximity Type 1
Prox	M3N-40821302
Buttons	L-U-P L-U-P-RS L-U-P-H L-U-P-H-RS
Code	M1-M2618, card X102
System	?
Chip	Phillips 46, reusable?
Note	GEN4 Tombstone remote

Proximity Type 2
Prox	M3NWXF0B1
Buttons	L-U-P L-U-P-G-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable

· 2023-2023 - can't program

Proximity Type 1
Prox	M3NWXF0B1
Buttons	L-U-P L-U-P-G-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable

Proximity Type 2
Prox	2BAHD-KFW1
Buttons	L-U-P-G-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable

· 2024-2025 - can't program

Proximity Ignition
Prox	2BAHD-KFW1
Buttons	L-U-P-G-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable
End Grand Cherokee

Grand Wagoneer - can't program

· 1981-1984

Years	Key	Note	Code	Card
1981-1984	RA4	Ignition	K1-K1000	1
1981-1984	RA3	Door/T.gate	L1-L1000	1
1985-1985	RA4	Ignition	K1-K1000	1
	B46	Ignition	E0-E999	25
	RA3	Door/T.gate	L1-L1000	1
1986-1991	B46	Ignition	E0-E999	25
1986-1991	RA3	Door/T.gate	L1-L1000	1

· 2021-2023 - can't program

Proximity Ignition

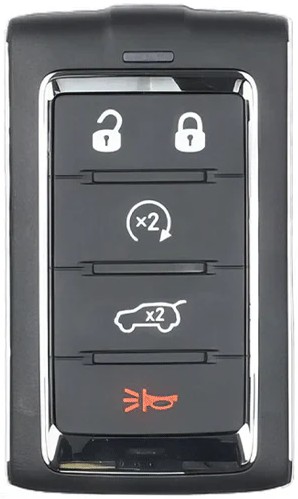

Prox	M3NWXF0B1
Buttons	L-U-P-H-RS L-U-P-H-LO-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable

· 2024-2025 - can't program

Proximity Ignition
Prox	2BAHD-KFW1
Buttons	L-U-P-H-LO-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable
End Grand Wagoneer

Liberty

· 2002-2004

Keyed Ignition: Transponder Optional
Key	Optional Y160-PT($80)
Fob	GQ43VT17T($80)
Buttons	L-U-P-T
Code	M1-M2618, card X102
System	Type 2, 4 digit PIN
Note	no PIN read
Chip	Texas 4D64, NOT reusable
+fob	T-Code: ADC-138, Type 3 Chrysler 2 (needs working fob)
+key	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

· 2005-2007

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	M3N5WY72XX*($155)
Buttons	L-U-P-H
Code	M1-M2618, card X102
System	PACIFICA, 4 digit PIN
Note	No PIN Read
Chip	Philips 46, NOT reusable
Other	Other FCCs won't work! Case: $24 ADD, AKL*; OBP with 2 ADS uses Green Dongle

· 2008-2012

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692713AA($155)
Buttons	L-U-P-H L-U-P-H-RS
Code	M1-M2618, card X102
System	CAN 3, 4 digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle
End Liberty

Patriot(2007-2017)

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618, card X102
System	CAN 3, 4 digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle
End Patriot

Renegade

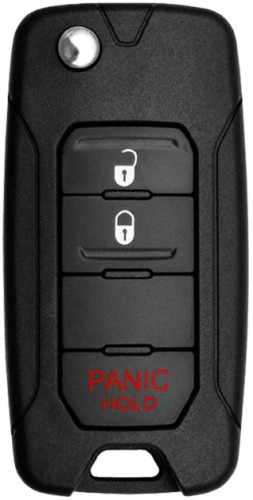

· 2015-2016 - can't program some

Keyed Ignition: cannot program
Key	2ADFTFI5AM433TX
Buttons	L-U-P L-U-P-H
Code	DE1-DE11210, Service SIP22
System	Fiat Incode
Chip	NXP AES 4A, NOT reusable

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Not a Gen4 prox

· 2017-2017

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Not a Gen4 prox

· 2018-2020

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Not a Gen4 prox
Two options: · RFH hub under the rear headliner · STAR connector on the passenger side, under the right side trim panel. Remove a single screw, take off the trim panels, and there will be a connector there, almost to the weather stripping. You'll need to back probe the green (CAN HI) and the brown (CAN LOW).

· 2021-2023

Proximity Ignition
Prox	M3N-40821302($285)
Buttons	L-U-P L-U-P-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL Not a Gen4 prox
Two options: · RFH hub under the rear headliner · Use a 12+8 cable to connect to a gateway located above the pedals

· 2024-2024 - unknown

No info yet. Electric vehicle.
End Renegade

Wagoneer - can't program

· 2022-2023 - can't program

Proximity Ignition
Prox	M3NWXF0B1
Buttons	L-U-P-H-RS L-U-P-H-LO-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable

· 2024-2024 - can't program

Proximity Ignition
Prox	2BAHD-KFW1
Buttons	L-U-P-H-LO-RS
Code	M1-M2618, card X102
System	?
Chip	NXP AES 4A, NOT reusable
End Wagoneer

Wrangler

· 1998-2000

Keyed Ignition: Transponder Optional
Key	Optional Y160-PT($80)
Code	M1-M2618, card X102
System	Type 1, 4 digit PIN
Note	no PIN read
Chip	Texas 4D64, NOT reusable
Other	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

· 2001-2006

Keyed Ignition: Transponder Optional
Key	Optional Y160-PT($80)
Code	M1-M2618, card X102
System	Type 2, 4 digit PIN
Note	PIN read requires brass key
Chip	Texas 4D64, NOT reusable
Other	ADD, AKL; match SKIM OBP with 2, ADS uses Green Dongle

· 2007-2017

Keyed Ignition: Transponder Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618, card X102
System	CAN 3, 4 digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle

· 2018-2018

Keyed Ignition: Transponder Optional Equipped
Key	Y164-PT($80)
Fob	OHT692427AA($155)
Buttons	L-U-P L-U-P-RS
Code	M1-M2618, card X102
System	CAN 3, 4 digit PIN
Chip	Philips 46, NOT reusable
Other	Case: $24 ADD, AKL; OBP with 2 ADS uses Tan Dongle

Proximity Ignition
Prox	OHT1130261($345)
Buttons	None L-U-P L-U-P-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL
STAR connector is located directly behind the glovebox. Open glove box, fold all the way down, and you'll see it.

· 2019-2025

Proximity Ignition
Prox	OHT1130261($345)
Buttons	None L-U-P L-U-P-RS
Code	DE1-DE11210, Service SIP22
System	RFH, 5 digit PIN
Chip	NXP AES 4A, NOT reusable
Other	ADD, AKL
STAR connector is located directly behind the glovebox. Open glove box, fold all the way down, and you'll see it.
End Wrangler

Other

Models & Years Not Listed Above

1947-1975: Keyed Ignition
Ignition	H1098DB (H16)
